OTDR Fiber Optic Tester, WANLUTECH Fiber Tester 1310/1550nm 28/26dB 5.4 inch Touchscreen Event Map OPM OLS VFL Support 4K IP Camera Test Cable Tracer RJ45 Cable TDR Test PoE Power Output Network Tools

flash sale iconLimited Time Sale
Until the end
19
49
49

US$239.99 cheaper than the new price!!

Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used  US$160.00
quantity

Product details

Management number 211731905 Release Date 2026/04/04 List Price US$160.00 Model Number 211731905
Category
  • [ Singlemode OTDR Fiber Optic Tester ] WANLUTECH OTDR MT-5500combines necessary fiber optic testing in one handheld device. OTDR test: wavelength 1310nm/1550nm, dynamic range 28dB/26dB. Quick Setup mode: quickly set wavelength, distance range, pulse width and measurement duration; Parameters Set mode: professional technicians can set the wavelength, distance range, pulse width, measurement mode, IOR, non-reflection threshold, end threshold and other parameters before testing, which will get more accurate curve results. As well, it is for maintenance and installation of 4K IP camera.(PLEASE NOTE: this 1310nm/1550nm model does not support testing live fiber)
  • [ OPM VFL LS OLS Event map ] OPM (Optical Power Meter: Calibrated Wavelength 850/1300/1310/1490/1550/1625nm); VFL: it is used to detect fiber for breakage, cracking, bending and other faults; LS (Light Source:mode CW/270 Hz/330 Hz/1 kHz/2 kHz); OLS (Optical Loss Test: It is used to test the insertion loss of optical passive devices); EVENT MAP: Visualise the results of fibre optic link inspections. Save and view the testing curves, support zoom and move curves, view details
  • [ 4K 12MP IP Camera Tester & Cable Tester ] It support to test max 4K 12MP IP cameras.Support IP Discovery/Quick OVIF/IPC test. It supports batch activation of DH, Hik cameras and modification of IP addresses, passwords, etc. RJ45 Cable TDR Test: it can test cable pair status, length, attenuation, reflectivity, impedance, skew. UTP Cable Tester: Test UTP cable connection status and display on the screen, support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug. Cable Tracer: Support searching for BNC cable, network cable and telephone cable from cluttered cables

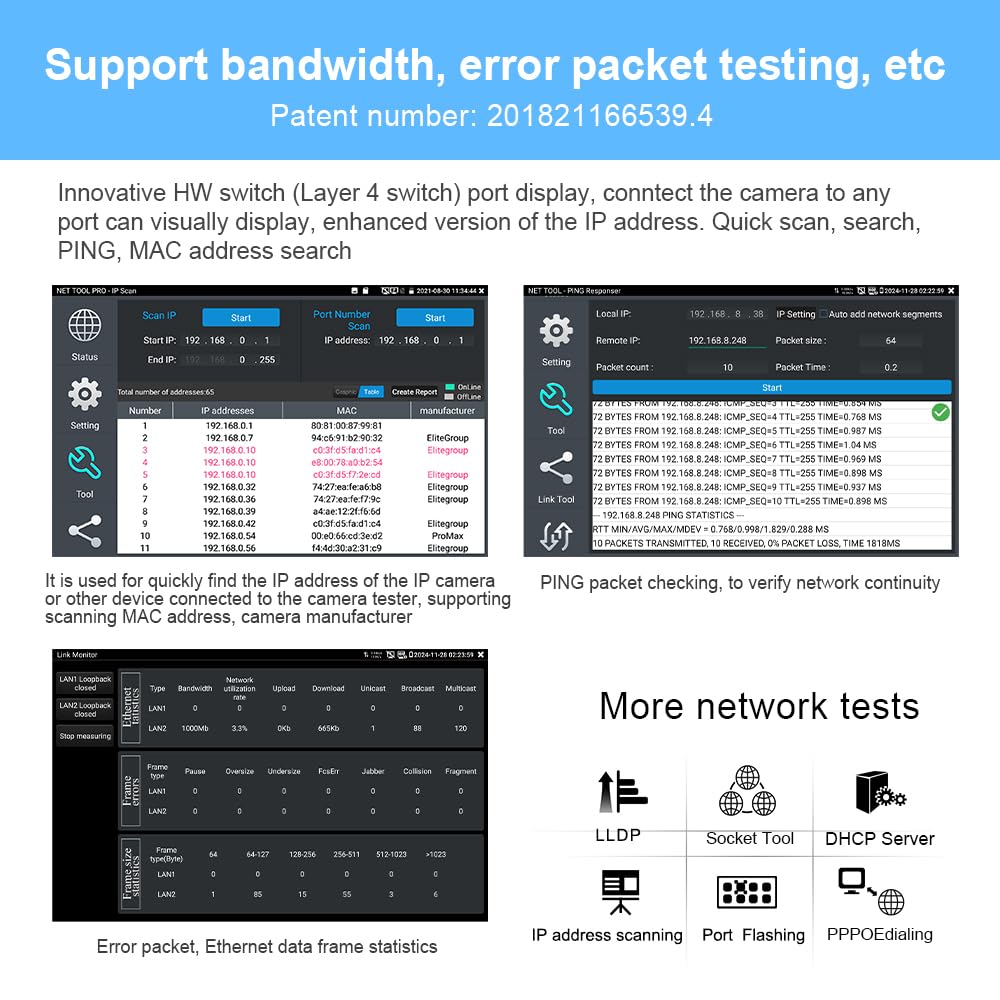

  • [ Network Test Tools & PoE & Wifi Analyzer ] Built-in porfessional network testing tools,such as Ping, IP scan, DHCP server, PPPOE, Trace Route, Port Flash, LLDP, Link Monitor, etc. PoE power output: support PoE IEEE802.3af/at , max 48V, power output 30W. Wifi Analyzer, Support 2.4G frequency band, wifi connection, wifi list, wifi information, wifi signal strength detection
  • [ Multi-function Tester ] More feature: 5.4'' IPS touch screen, 1920x1152 resolution, one gigabit Ethernet 10/100/1000M Port, audio in etc. Power input: DC12V1A. Power output: DC12V/3A,DC5V/1A
  • [ PLEASE NOTE ] There is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet. We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours

Color Orange
Model MT-5500
Brand Name WANLUTECH
Style Name MT-5500 1310/1550nm 28/26dB
Manufacturer GUANGZHOU WANGLU TECHNOLOGY CO.,LTD
Power Source Battery Powered
Measurement Type OTDR
Included Components OTDR MT-5500 +digital cable tracer +tool bag+accessories
